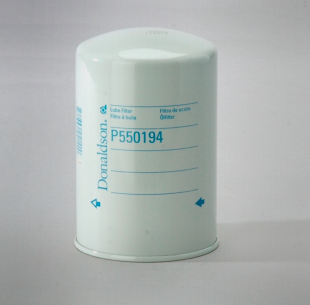

Donaldson Filtration P550194 LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?
Donaldson lube filters are designed to keep today’s engine
lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause
engine damage.
• Include heavy duty components that are built to perform,
built to last.
• Deliver essential engine protection for maximum cold flow
performance.
Attributes
Outer Diameter 3.82 inch (97 mm)
Thread Size 5/8-18 UN
Length 5.67 inch (144 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.48 inch (63 mm)
Efficiency 99% 40 micron
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 12 psi (0.8 bar)
Bypass Valve Setting HR 15 psi (1 bar)
Media Type Cellulose
Collapse Burst 80 psi (5.5 bar)
Type Full-Flow
Style Spin-On
Price Type F
Primary Application WISCONSIN RV38
Packaged Dimensions
Packaged Length 3.88 inch (9.843 cm)
Packaged Width 3.88 inch (9.843 cm)
Packaged Height 5.69 inch (14.446 cm)
Packaged Weight 1.10 lb (0.499 kg)
Packaged Volume 0.05 ft3 (0.001 m3)
Pieces Per Pallet 432
Other Information
Country of Origin Mexico
NMFC Code 069100-13
HTS Code 8421230000
UPC Code 742330041420
