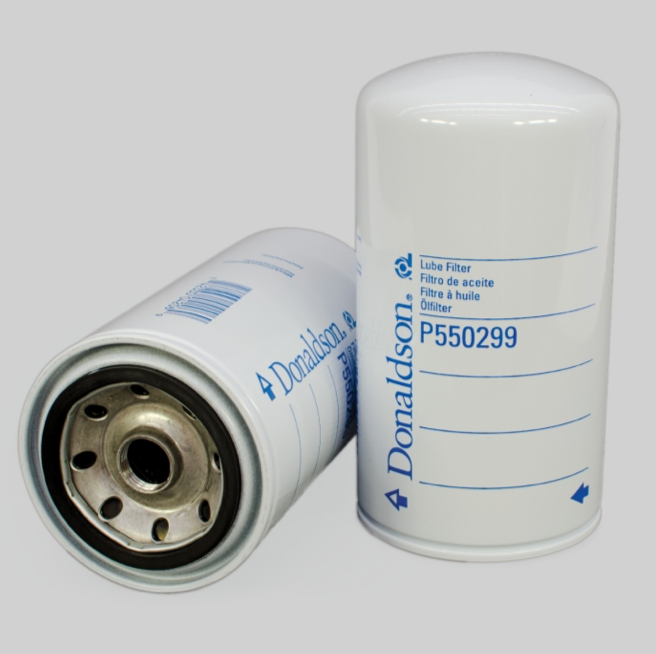

Donaldson Filtration P550299.LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?

Donaldson lube filters are designed to keep today’s engine

lube systems functioning at peak performance.

• Keep oil clean by capturing contaminants that cause

engine damage.

• Include heavy duty components that are built to perform,

built to last.

• Deliver essential engine protection for maximum cold flow

performance.

Attributes

Outer Diameter 3.66 inch (93 mm)

Thread Size 3/4-16 UN

Length 6.85 inch (174 mm)

Gasket OD 2.80 inch (71 mm)

Gasket ID 2.40 inch (61 mm)

Efficiency 99% 40 micron

Efficiency Test Std SAE J1858

Anti-Drainback Valve Yes

Bypass Valve YesBypass Valve Setting LR 12 psi (0.8 bar)

Bypass Valve Setting HR 15 psi (1 bar)

Media Type Cellulose

Collapse Burst 100 psi (6.9 bar)

Type Full-Flow

Style Spin-On

Price Type F

Packaged Dimensions

Packaged Length 3.70 inch (9.398 cm)

Packaged Width 3.70 inch (9.398 cm)

Packaged Height 6.60 inch (16.764 cm)

Packaged Weight 1.05 lb (0.477 kg)

Packaged Volume 0.05 ft3 (0.001 m3)

Pieces Per Pallet 720

Other Information

Country of Origin Mexico

NMFC Code 069100-09

HTS Code 8421230000

UPC Code 742330042069

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Formaldehyde, which are knownto the State of California to cause cancer. For

more information go to

www.P65Warnings.ca.gov.
