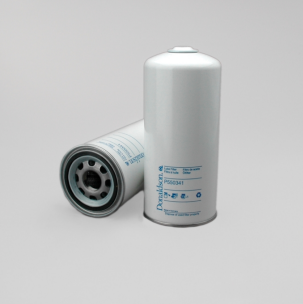

Donaldson Filtration P550341 LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?
Donaldson lube filters are designed to keep today’s engine
lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause
engine damage.
• Include heavy duty components that are built to perform,
built to last.
• Deliver essential engine protection for maximum cold flow
performance.
Attributes
Outer Diameter 5.55 inch (141 mm)
Thread Size 1 1/2-16 UN
Length 12.20 inch (310 mm)
Gasket OD 4.37 inch (111 mm)
Gasket ID 3.94 inch (100 mm)
Efficiency 50% 25 micron
Efficiency Test Std SAE J1858
Bypass Valve Yes
Bypass Valve Setting LR 32 psi (2.2 bar)
Bypass Valve Setting HR 41 psi (2.8 bar)
Media Type Cellulose
Collapse Burst 59 psi (4.1 bar)
Type Full-Flow
Style Spin-On
Price Type F
Primary Application DAF 267714
Packaged Dimensions
Packaged Length 5.51 inch (13.995 cm)
Packaged Width 5.51 inch (13.995 cm)
Packaged Height 12.99 inch (32.995 cm)
Packaged Weight 4.31 lb (1.957 kg)
Packaged Volume 0.23 ft3 (0.006 m3)
Pieces Per Pallet 144
Other Information
Country of Origin Poland
NMFC Code 069100-06
HTS Code 8421230000
UPC Code 742330042243
