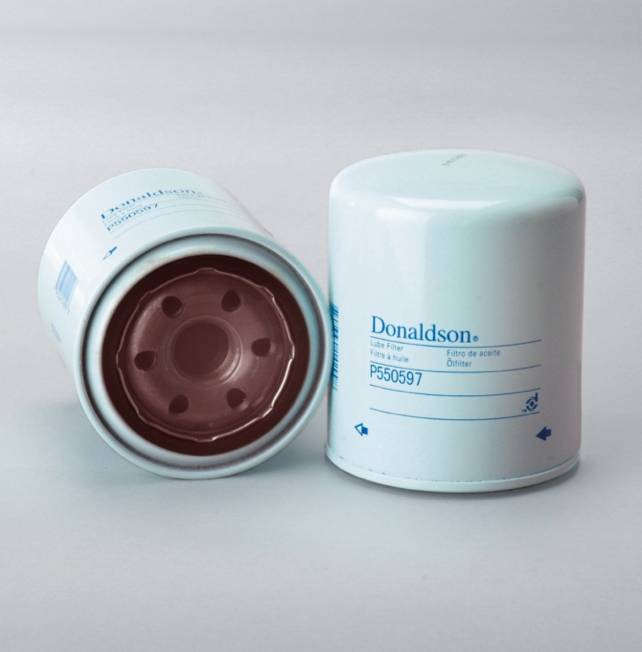

Donaldson Filtration P550597.LUBE FILTER, SPIN-ON COMBINATION

Why Choose Donaldson Lube Filters?

Donaldson lube filters are designed to keep today’s engine

lube systems functioning at peak performance.

• Keep oil clean by capturing contaminants that cause

engine damage.

• Include heavy duty components that are built to perform,

built to last.

Attributes

Outer Diameter 4.13 inch (105 mm)

Thread Size M24 x 1.5

Length 4.80 inch (122 mm)

Gasket OD 3.15 inch (80 mm)

Gasket ID 2.80 inch (71 mm)

Efficiency 99% 40 micron

Anti-Drainback Valve Yes

Bypass Valve Yes

Bypass Valve Setting LR 15 psi (1 bar)

Bypass Valve Setting HR 29 psi (2 bar)Type Combination

Style Spin-On

Price Type F

Primary Application TOYOTA 9091503006

Packaged Dimensions

Packaged Length 4.72 inch (11.989 cm)

Packaged Width 4.72 inch (11.989 cm)

Packaged Height 6.30 inch (16.002 cm)

Packaged Weight 1.72 lb (0.780 kg)

Packaged Volume 0.08 ft3 (0.002 m3)

Pieces Per Pallet 576

Other Information

Country of Origin South Africa

NMFC Code 069100-13

HTS Code 8421230000

UPC Code 742330142998
