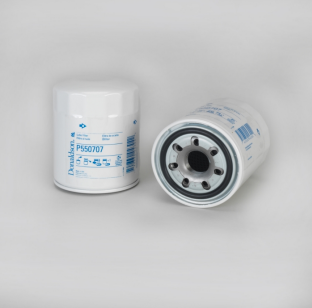

Donaldson Filtration P550707 LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?
Donaldson lube filters are designed to keep today’s engine
lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause
engine damage.
• Include heavy duty components that are built to perform,
built to last.
• Deliver essential engine protection for maximum cold flow
performance.
Attributes
Outer Diameter 4.25 inch (108 mm)
Thread Size M30 x 1.5
Length 5.51 inch (140 mm)
Gasket OD 3.39 inch (86 mm)
Gasket ID 2.95 inch (75 mm)
Efficiency 99% 48 micron
Efficiency Test Std ISO 4572
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 12 psi (0.8 bar)
Bypass Valve Setting HR 15 psi (1 bar)
Collapse Burst 100 psi (6.9 bar)
Type Full-Flow
Style Spin-On
Price Type F
Packaged Dimensions
Packaged Length 6.20 inch (15.748 cm)
Packaged Width 6.30 inch (16.002 cm)
Packaged Height 6.60 inch (16.764 cm)
Packaged Weight 2.06 lb (0.935 kg)
Packaged Volume 0.15 ft3 (0.004 m3)
Pieces Per Pallet 294
Other Information
Country of Origin Korea, Republic of
NMFC Code 069100-05
HTS Code 8421230000
UPC Code 742330043042
