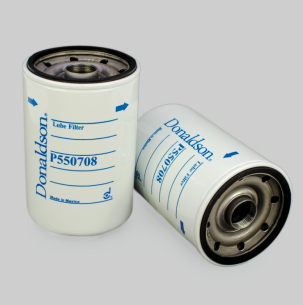

Donaldson Filtration P550708 LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?
Donaldson lube filters are designed to keep today’s engine
lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause
engine damage.
• Include heavy duty components that are built to perform,
built to last.
• Deliver essential engine protection for maximum cold flow
performance.
Attributes
Outer Diameter 4.25 inch (108 mm)
Thread Size 1 1/8-16 UN
Length 6.57 inch (167 mm)
Gasket OD 3.94 inch (100 mm)
Gasket ID 3.58 inch (91 mm)
Efficiency 99% 45 micron
Efficiency Test Std ISO 4572
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 28 psi (1.9 bar)
Collapse Burst 100 psi (6.9 bar)
Type Full-Flow
Style Spin-On
Price Type F
Primary Application KOMATSU 6134515120
Packaged Dimensions
Packaged Length 4.40 inch (11.176 cm)
Packaged Width 4.30 inch (10.922 cm)
Packaged Height 6.30 inch (16.002 cm)
Packaged Weight 1.92 lb (0.869 kg)
Packaged Volume 0.07 ft3 (0.002 m3)
Pieces Per Pallet 252
Other Information
Country of Origin Mexico
NMFC Code 069100-08
HTS Code 8421230000
UPC Code 742330043059
