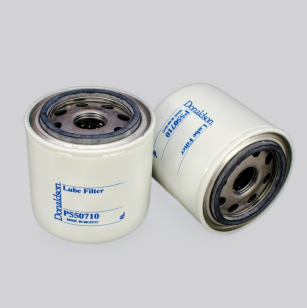

Donaldson Filtration P550710 LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?
Donaldson lube filters are designed to keep today’s engine
lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause
engine damage.
• Include heavy duty components that are built to perform,
built to last.
• Deliver essential engine protection for maximum cold flow
performance.
Attributes
Outer Diameter 3.70 inch (94 mm)
Thread Size 1-12 UN
Length 3.74 inch (95 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 99% 40 micron
Efficiency Test Std ISO 4572
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 35 psi (2.4 bar)
Bypass Valve Setting HR 38 psi (2.6 bar)
Collapse Burst 75 psi (5.2 bar)
Type Full-Flow
Style Spin-On
Price Type F
Packaged Dimensions
Packaged Length 3.94 inch (10.008 cm)
Packaged Width 3.94 inch (10.008 cm)
Packaged Height 3.94 inch (10.008 cm)
Packaged Weight 0.95 lb (0.431 kg)
Packaged Volume 0.04 ft3 (0.001 m3)
Pieces Per Pallet 864
Other Information
Country of Origin Mexico
NMFC Code 069100-13
HTS Code 8421230000
UPC Code 742330043066
