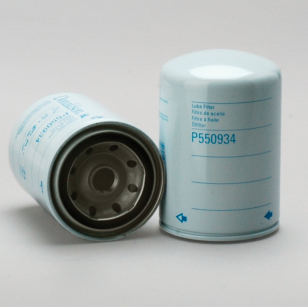

Donaldson Filtration P550934 LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?
Donaldson lube filters are designed to keep today’s engine
lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause
engine damage.
• Include heavy duty components that are built to perform,
built to last.
• Deliver essential engine protection for maximum cold flow
performance.
Attributes
Outer Diameter 3.66 inch (93 mm)
Thread Size M20 x 1.5
Length 5.35 inch (136 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 99% 40 micron
Efficiency Test Std ISO 16889
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 8 psi (0.55 bar)
Bypass Valve Setting HR 11 psi (0.75 bar)
Media Type Cellulose
Type Full-Flow
Style Spin-On
Price Type F
Primary Application CATERPILLAR 1N4402H
Packaged Dimensions
Packaged Length 3.60 inch (9.144 cm)
Packaged Width 3.60 inch (9.144 cm)
Packaged Height 5.50 inch (13.970 cm)
Packaged Weight 1.07 lb (0.486 kg)
Packaged Volume 0.04 ft3 (0.001 m3)
Pieces Per Pallet 840
Other Information
Country of Origin Mexico
NMFC Code 069100-10
HTS Code 8421230000
UPC Code 742330199770
This product can expose you to chemicals
including Formaldehyde, which are known
Proposition 65 Notice for California:
WARNING
to the State of California to cause cancer. For
more information go to
www.P65Warnings.ca.gov.
