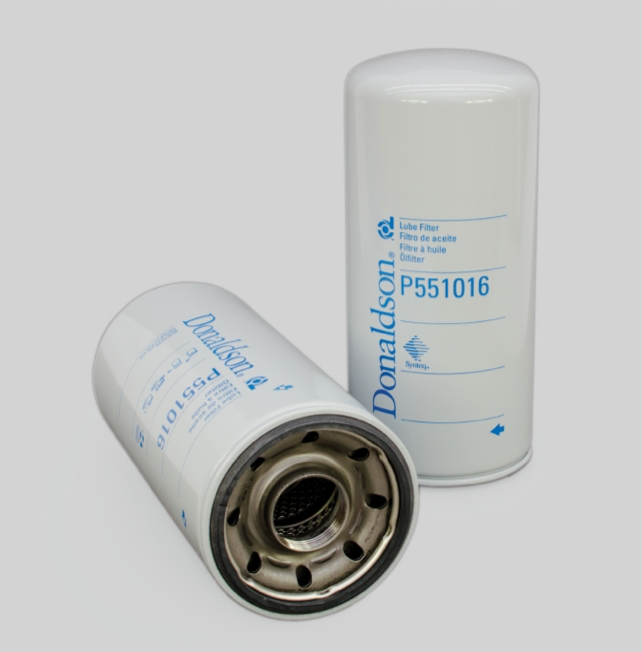

Donaldson Filtration P551016.LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?

Donaldson lube filters are designed to keep today’s engine

lube systems functioning at peak performance.

• Keep oil clean by capturing contaminants that cause

engine damage.

• Include heavy duty components that are built to perform,

built to last.

• Deliver essential engine protection for maximum cold flow

performance.

Attributes

Outer Diameter 4.65 inch (118 mm)

Thread Size 1 5/8-12 UN

Length 10.24 inch (260 mm)

Gasket OD 4.33 inch (110 mm)

Gasket ID 3.86 inch (98 mm)

Efficiency 99% 15 micron

Efficiency Test Std ISO 4548-12

Bypass Valve Yes

Bypass Valve Setting LR 26 psi (1.8 bar)Bypass Valve Setting HR 30 psi (2.1 bar)

Media Type Synthetic

Collapse Burst 149 psi (10.3 bar)

Flow Direction Standard

Type Full-Flow

Style Spin-On

Price Type F

Packaged Dimensions

Packaged Length 4.72 inch (11.989 cm)

Packaged Width 4.72 inch (11.989 cm)

Packaged Height 6.30 inch (16.002 cm)

Packaged Weight 3.04 lb (1.378 kg)

Packaged Volume 0.08 ft3 (0.002 m3)

Pieces Per Pallet 270

Other Information

Country of Origin United States

NMFC Code 069100-13

HTS Code 8421230000

UPC Code 742330962626
