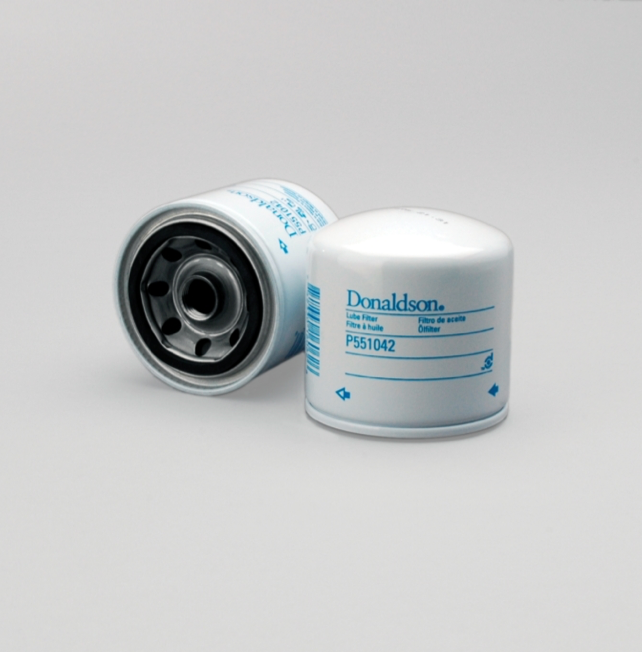

Donaldson Filtration P551042.LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?

Donaldson lube filters are designed to keep today’s engine

lube systems functioning at peak performance.

• Keep oil clean by capturing contaminants that cause

engine damage.

• Include heavy duty components that are built to perform,

built to last.

• Deliver essential engine protection for maximum cold flow

performance.

Attributes

Outer Diameter 3.66 inch (93 mm)

Thread Size 3/4-16 UN

Length 3.66 inch (93 mm)

Gasket OD 2.83 inch (72 mm)

Gasket ID 2.44 inch (62 mm)

Efficiency 99% 40 micron

Anti-Drainback Valve Yes

Bypass Valve Yes

Bypass Valve Setting LR 20 psi (1.38 bar)Bypass Valve Setting HR 28 psi (1.93 bar)

Media Type Cellulose

Type Full-Flow

Style Spin-On

Price Type F

Primary Application BOBCAT 6678233

Packaged Dimensions

Packaged Length 3.65 inch (9.271 cm)

Packaged Width 3.65 inch (9.271 cm)

Packaged Height 4.00 inch (10.160 cm)

Packaged Weight 0.95 lb (0.431 kg)

Packaged Volume 0.03 ft3 (0.001 m3)

Pieces Per Pallet 1080

Other Information

Country of Origin Mexico

NMFC Code 069100-11

HTS Code 8421230000

UPC Code 742330160626
