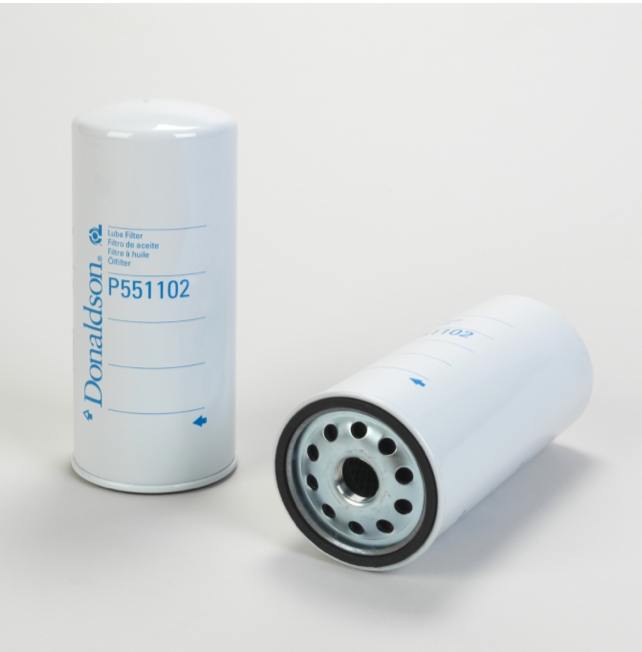

Donaldson Filtration P551102.LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?

Donaldson lube filters are designed to keep today’s engine

lube systems functioning at peak performance.

• Keep oil clean by capturing contaminants that cause

engine damage.

• Include heavy duty components that are built to perform,

built to last.

• Deliver essential engine protection for maximum cold flow

performance.

Attributes

Outer Diameter 4.33 inch (110 mm)

Thread Size 1 1/8-16 UN

Length 10.08 inch (256 mm)

Gasket OD 4.02 inch (102 mm)

Gasket ID 3.62 inch (92 mm)

Efficiency 50% 20 micron

Efficiency Test Std SAE J1858

Anti-Drainback Valve Yes

Bypass Valve YesBypass Valve Setting LR 36 psi (2.5 bar)

Media Type Cellulose

Collapse Burst 58 psi (4 bar)

Flow Direction Standard

Type Full-Flow

Style Spin-On

Price Type F

Primary Application DEUTZ 1174420

Packaged Dimensions

Packaged Length 4.72 inch (11.989 cm)

Packaged Width 4.72 inch (11.989 cm)

Packaged Height 11.02 inch (27.991 cm)

Packaged Weight 2.73 lb (1.240 kg)

Packaged Volume 0.14 ft3 (0.004 m3)

Pieces Per Pallet 234

Other Information

Country of Origin Italy

NMFC Code 069100-09

HTS Code 8421230000

UPC Code 742330043639
