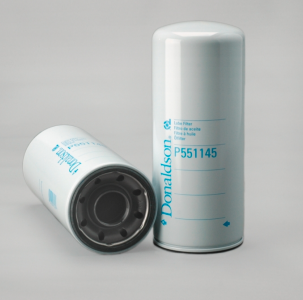

Donaldson Filtration P551145 LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?
Donaldson lube filters are designed to keep today’s engine
lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause
engine damage.
• Include heavy duty components that are built to perform,
built to last.
• Deliver essential engine protection for maximum cold flow
performance.
Attributes
Outer Diameter 4.65 inch (118 mm)
Thread Size 1 3/4-12 UN
Length 11.26 inch (286 mm)
Gasket OD 4.33 inch (110 mm)
Gasket ID 3.86 inch (98 mm)
Efficiency 99% 20 micron
Efficiency Test Std SAE J1858
Bypass Valve Yes
Media Type Synthetic
Collapse Burst 200 psi (13.8 bar)
Type Full-Flow
Style Spin-On
Price Type F
Primary Application NAVISTAR 1889124C91
Packaged Dimensions
Packaged Length 4.80 inch (12.192 cm)
Packaged Width 4.80 inch (12.192 cm)
Packaged Height 12.38 inch (31.445 cm)
Packaged Weight 3.37 lb (1.530 kg)
Packaged Volume 0.14 ft3 (0.004 m3)
Pieces Per Pallet 216
Other Information
Country of Origin Mexico
NMFC Code 069100-05
HTS Code 8421230000
UPC Code 742330975657
