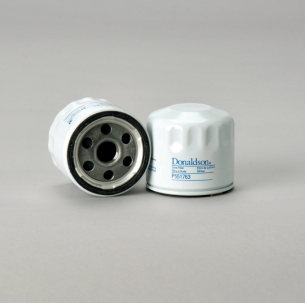

Donaldson Filtration P551763 LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?
Donaldson lube filters are designed to keep today’s engine
lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause
engine damage.
• Include heavy duty components that are built to perform,
built to last.
• Deliver essential engine protection for maximum cold flow
performance.
Attributes
Outer Diameter 2.91 inch (74 mm)
Thread Size 3/4-16 UN
Length 2.64 inch (67 mm)
Gasket OD 2.72 inch (69 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 99% 40 micron
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 9 psi (0.6 bar)
Collapse Burst 49 psi (3.4 bar)
Type Full-Flow
Style Spin-On
Price Type F
Packaged Dimensions
Packaged Length 3.50 inch (8.890 cm)
Packaged Width 3.00 inch (7.620 cm)
Packaged Height 3.20 inch (8.128 cm)
Packaged Weight 0.58 lb (0.261 kg)
Packaged Volume 0.02 ft3 (0.001 m3)
Pieces Per Pallet 1584
Other Information
Country of Origin Mexico
NMFC Code 069100-13
HTS Code 8421230000
UPC Code 742330138014
