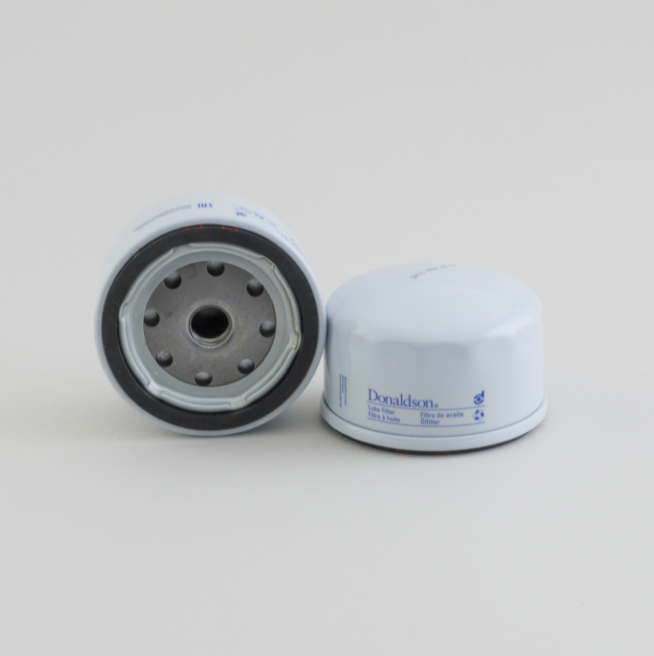

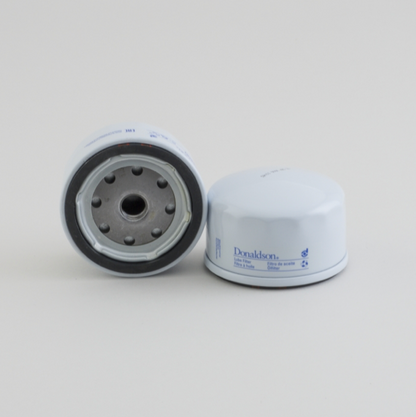

Donaldson Filtration P553400.LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?

Donaldson lube filters are designed to keep today’s engine

lube systems functioning at peak performance.

• Keep oil clean by capturing contaminants that cause

engine damage.

• Include heavy duty components that are built to perform,

built to last.

• Deliver essential engine protection for maximum cold flow

performance.

Attributes

Outer Diameter 2.99 inch (76 mm)

Thread Size M14 x 1.5

Length 2.05 inch (52 mm)

Gasket OD 2.83 inch (71.8 mm)

Gasket ID 2.44 inch (62 mm)

Efficiency 50% 17 micron

Efficiency 95% 30 micron

Efficiency Beta 75 35 micron

Bypass Valve YesBypass Valve Setting LR 102 psi (7 bar)

Bypass Valve Setting HR 145 psi (10 bar)

Media Type Cellulose

Collapse Burst 102 psi (7 bar)

Type Full-Flow

Style Spin-On

Price Type F

Primary Application QUINCY 2023400100

Packaged Dimensions

Packaged Length 2.76 inch (7.010 cm)

Packaged Width 2.76 inch (7.010 cm)

Packaged Height 2.76 inch (7.010 cm)

Packaged Weight 0.65 lb (0.295 kg)

Packaged Volume 0.01 ft3 (0.000 m3)

Pieces Per Pallet 1848

Other Information

Country of Origin Indonesia

NMFC Code 069100-13

HTS Code 8421230000

UPC Code 742330988008
