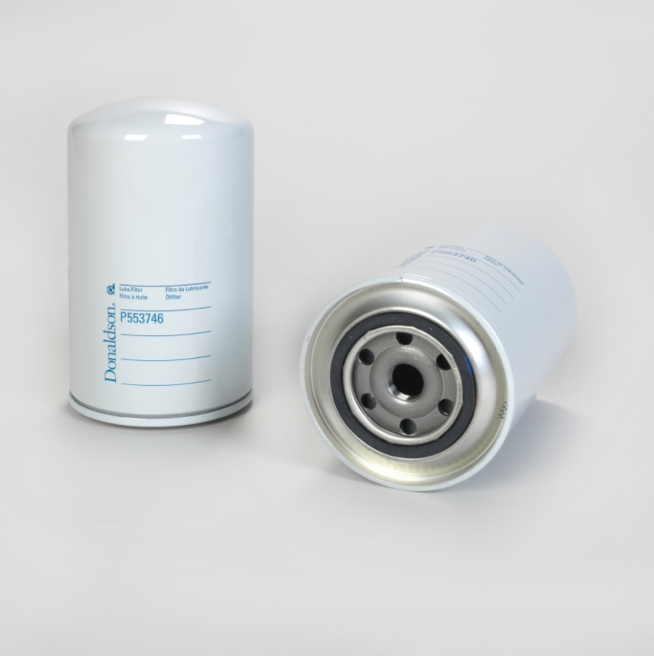

Donaldson Filtration P553746 LUBE FILTER, SPIN-ON BYPASS

Why Choose Donaldson Lube Filters?

Donaldson lube filters are designed to keep today’s engine

lube systems functioning at peak performance.

• Keep oil clean by capturing contaminants that cause

engine damage.

• Include heavy duty components that are built to perform,

built to last.

• Offer increased efficiency in capturing smaller particles.

Attributes

Outer Diameter 4.29 inch (109 mm)

Thread Size 3/4-20 UN

Length 7.87 inch (200 mm)

Gasket OD 2.83 inch (72 mm)

Gasket ID 2.44 inch (62 mm)

Efficiency 99% 12 micron

Efficiency Test Std SAE J1858

Media Type Cellulose

Collapse Burst 100 psi (6.9 bar)

Type BypassStyle Spin-On

Price Type F

Primary Application 1 G/BSPP

Packaged Dimensions

Packaged Length 4.33 inch (10.998 cm)

Packaged Width 4.33 inch (10.998 cm)

Packaged Height 7.48 inch (18.999 cm)

Packaged Weight 2.11 lb (0.956 kg)

Packaged Volume 0.08 ft3 (0.002 m3)

Pieces Per Pallet 420

Other Information

Country of Origin United States

NMFC Code 069100-09

HTS Code 8421230000

UPC Code 742330044438
