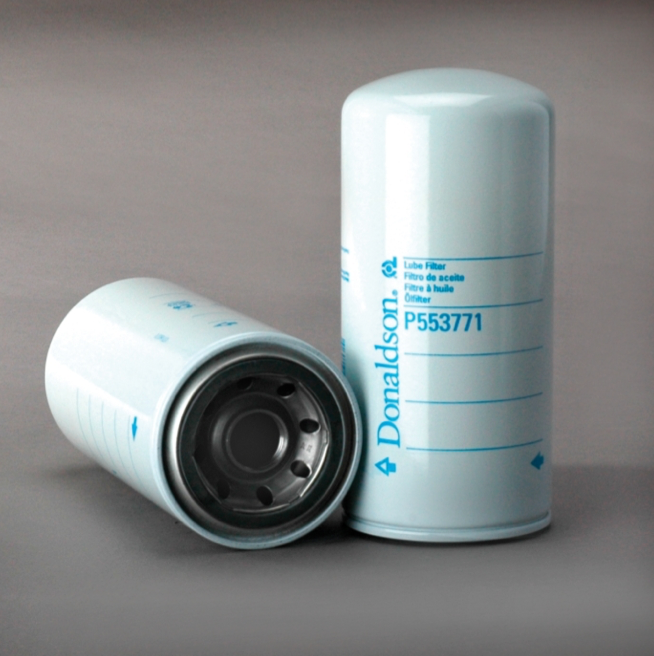

Donaldson Filtration P553771 LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?

Donaldson lube filters are designed to keep today’s engine

lube systems functioning at peak performance.

• Keep oil clean by capturing contaminants that cause

engine damage.

• Include heavy duty components that are built to perform,

built to last.

• Deliver essential engine protection for maximum cold flow

performance.

Attributes

Outer Diameter 3.66 inch (93 mm)

Thread Size 1-12 UN

Length 7.87 inch (200 mm)

Gasket OD 2.80 inch (71 mm)

Gasket ID 2.40 inch (61 mm)

Efficiency 99% 40 micron

Efficiency Test Std ISO 4548-12

Anti-Drainback Valve Yes

Bypass Valve YesBypass Valve Setting LR 29 psi (2 bar)

Bypass Valve Setting HR 36 psi (2.5 bar)

Media Type Cellulose

Collapse Burst 100 psi (6.9 bar)

Flow Direction Standard

Type Full-Flow

Style Spin-On

Price Type F

Packaged Dimensions

Packaged Length 0.31 FT

Packaged Width 0.31 FT

Packaged Height 0.66 FT

Packaged Weight 1.51 lb (0.686 kg)

Packaged Volume 0.06 ft3 (0.002 m3)

Pieces Per Pallet 600

Other Information

Country of Origin Colombia

NMFC Code 069100-05

HTS Code 8421230000

UPC Code 742330044445
