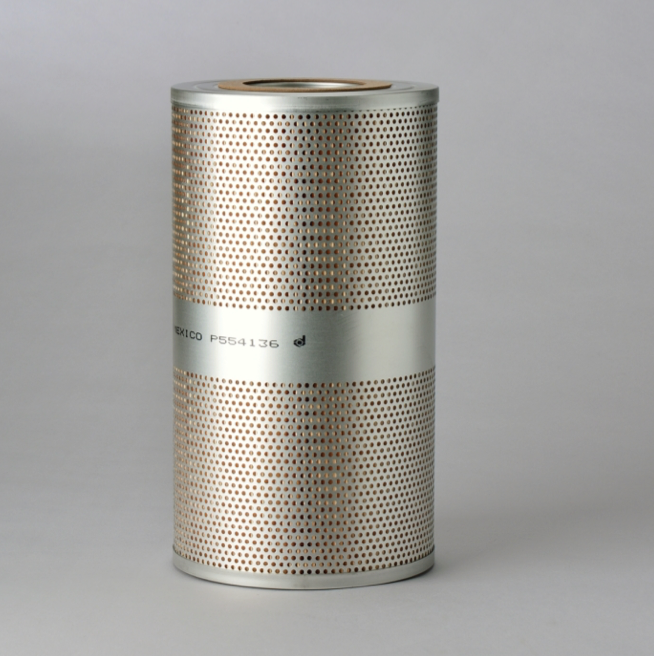

Donaldson Filtration P554136MP.LUBE FILTER, CARTRIDGE

Why Choose Donaldson Lube Filters?

Donaldson lube filters are designed to keep today’s engine

lube systems functioning at peak performance.

• Keep oil clean by capturing contaminants that cause

engine damage.

• Include heavy duty components that are built to perform,

built to last.

• Deliver essential engine protection for maximum cold flow

performance.

Attributes

Outer Diameter 7.40 inch (188 mm)

Inner Diameter 3.42 inch (86.99 mm)

Length 13.39 inch (340 mm)

Gasket OD 4.80 inch (121.9 mm)

Gasket ID 3.43 inch (87 mm)

Efficiency 50% 20 micron

Media Type Cellulose

Collapse Burst 75 psi (5.2 bar)

Style CartridgePrice Type F

Primary Application CATERPILLAR 1W4136

Packaged Dimensions

Packaged Length 8.10 inch (20.574 cm)

Packaged Width 7.80 inch (19.812 cm)

Packaged Height 14.20 inch (36.068 cm)

Packaged Weight 4.49 lb (2.038 kg)

Packaged Volume 0.52 ft3 (0.015 m3)

Pieces Per Pallet 90

Other Information

Country of Origin Mexico

NMFC Code 069100-03

HTS Code 8421230000

UPC Code 742330044636
