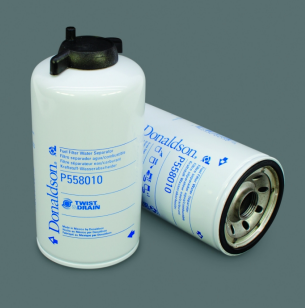

Donaldson Filtration P558010 FUEL FILTER, WATER SEPARATOR SPIN-ON TWIST&DRAIN

PIN-ON TWIST&DRAIN
Attributes
Outer Diameter 3.66 inch (93 mm)
Thread Size 1-12 UN
Length 7.61 inch (193.2 mm)
Gasket OD 3.39 inch (86.2 mm)
Gasket ID 3.05 inch (77.5 mm)
Efficiency 99% 20 micron
Efficiency Test Std SAE J1488, J1985
Emulsified H2O Efficiency 96 Percent
Collapse Burst 75 psi (5.2 bar)
Type Water Separator
Style Spin-On
Brand Twist&Drain™
Media Type Cellulose
Price Type F
Primary Application DETROIT DIESEL 23512317
Notes Not for Marine Applications
Packaged Dimensions
Packaged Length 0.31 FT
Packaged Width 0.31 FT
Packaged Height 0.64 FT
Packaged Weight 1.24 lb (0.563 kg)
Packaged Volume 0.06 ft3 (0.002 m3)
Pieces Per Pallet 540
Other Information
Country of Origin Mexico
NMFC Code 069100-05
HTS Code 8421230000
UPC Code 742330045503
