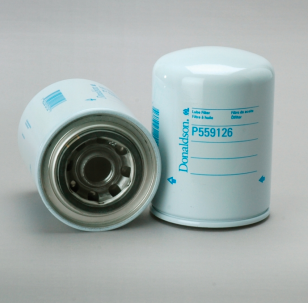

Donaldson Filtration P559126 LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?
Donaldson lube filters are designed to keep today’s engine
lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause
engine damage.
• Include heavy duty components that are built to perform,
built to last.
• Deliver essential engine protection for maximum cold flow
performance.
Attributes
Outer Diameter 4.21 inch (107 mm)
Thread Size 1-12 UN
Length 5.79 inch (147 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 99% 40 micron
Efficiency Test Std ISO 16889
Bypass Valve Yes
Bypass Valve Setting LR 17 psi (1.17 bar)
Bypass Valve Setting HR 20 psi (1.38 bar)
Media Type Cellulose
Type Full-Flow
Style Spin-On
Price Type F
Primary Application NEW HOLLAND 1879134
Packaged Dimensions
Packaged Length 0.35 FT
Packaged Width 0.35 FT
Packaged Height 0.48 FT
Packaged Weight 1.84 lb (0.835 kg)
Packaged Volume 0.06 ft3 (0.002 m3)
Pieces Per Pallet 648
Other Information
Country of Origin Mexico
NMFC Code 069100-05
HTS Code 8421230000
UPC Code 742330201527
This product can expose you to chemicals
including Formaldehyde, which are known
to the State of California to cause cancer. For
more information go to
Proposition 65 Notice for California:
WARNING
www.P65Warnings.ca.gov.
