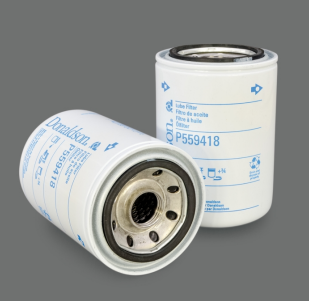

Donaldson Filtration P559418 LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?
Donaldson lube filters are designed to keep today’s engine
lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause
engine damage.
• Include heavy duty components that are built to perform,
built to last.
• Deliver essential engine protection for maximum cold flow
performance.
Attributes
Outer Diameter 3.74 inch (95 mm)
Thread Size 1-12 UN
Length 5.47 inch (139 mm)
Gasket OD 2.80 inch (71 mm)
Gasket ID 2.40 inch (61 mm)
Efficiency 99% 40 micron
Efficiency Test Std ISO 4548-12
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 30 psi (2.1 bar)
Bypass Valve Setting HR 38 psi (2.6 bar)
Media Type Cellulose
Collapse Burst 100 psi (6.9 bar)
Flow Direction Standard
Type Full-Flow
Style Spin-On
Price Type F
Primary Application DEUTZ 1174418
Packaged Dimensions
Packaged Length 3.70 inch (9.398 cm)
Packaged Width 3.40 inch (8.636 cm)
Packaged Height 5.00 inch (12.700 cm)
Packaged Weight 1.04 lb (0.470 kg)
Packaged Volume 0.04 ft3 (0.001 m3)
Pieces Per Pallet 840
Other Information
Country of Origin Mexico
NMFC Code 069100-13
HTS Code 8421230000
UPC Code 742330047132
