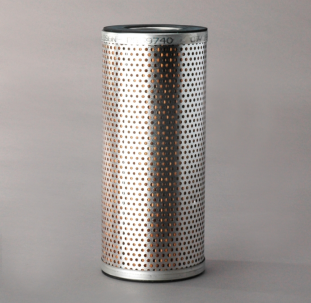

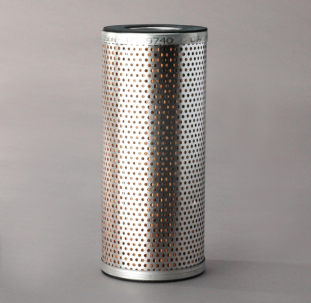

Donaldson Filtration P559740 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 4.00 inch (101.6 mm)
Inner Diameter 2.30 inch (58.4 mm)
Length 9.13 inch (232 mm)
Overall Length 9.25 inch (235 mm)
Efficiency Beta 2 20 micron
Efficiency Beta 20 35 micron
Efficiency Beta 1000 39 micron
Collapse Burst 149 psi (10.3 bar)
Flow Direction Standard
Style Cartridge
Media Type Cellulose
Price Type F
Primary Application CATERPILLAR 9M9740
Packaged Dimensions
Packaged Length 4.00 inch (10.160 cm)
Packaged Width 3.70 inch (9.398 cm)
Packaged Height 9.20 inch (23.368 cm)
Packaged Weight 1.23 lb (0.556 kg)
Packaged Volume 0.08 ft3 (0.002 m3)
Pieces Per Pallet 384
Other Information
Country of Origin Mexico
NMFC Code 069100-08
HTS Code 8421290040
UPC Code 742330047187
