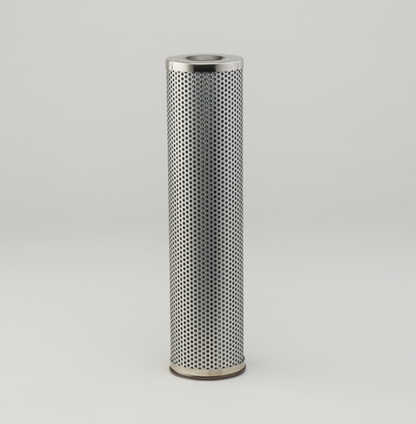

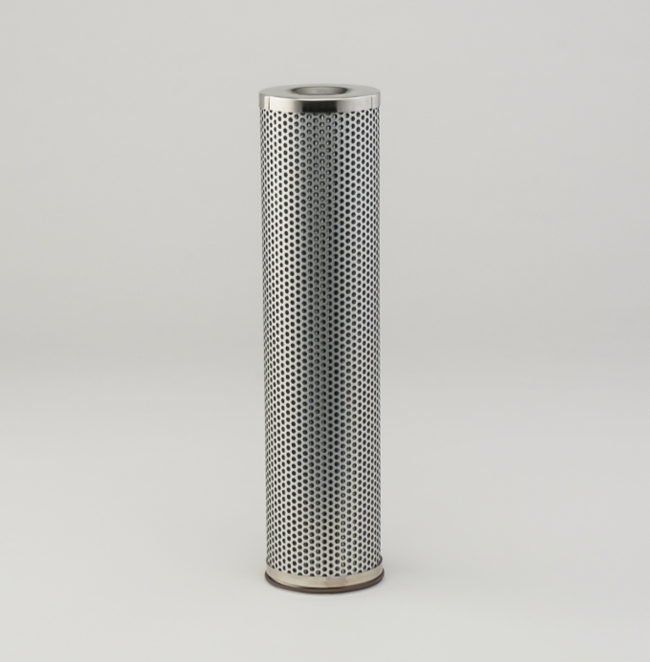

Donaldson Filtration P560404.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 3.07 inch (78 mm)

Inner Diameter 1.63 inch (41.5 mm)

Length 12.87 inch (327 mm)

Efficiency Beta 1000 6 micron

Collapse Burst 145 psi (10 bar)

Style Cartridge

Media Type Synthetic

Price Type FHPackaged Dimensions

Packaged Length 3.60 inch (9.144 cm)

Packaged Width 3.50 inch (8.890 cm)

Packaged Height 15.10 inch (38.354 cm)

Packaged Weight 1.90 lb (0.860 kg)

Packaged Volume 0.11 ft3 (0.003 m3)

Pieces Per Pallet 15

Other Information

Country of Origin Canada

NMFC Code 069100-12

HTS Code 8421290065

UPC Code 742330117200
