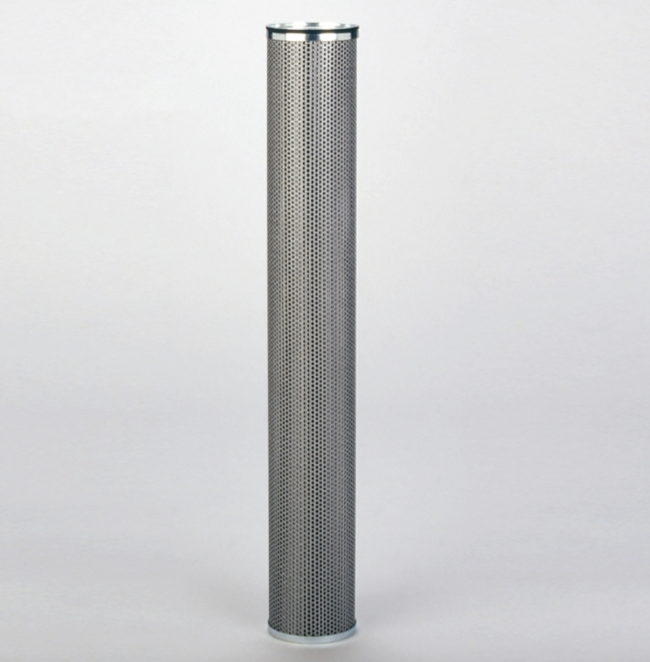

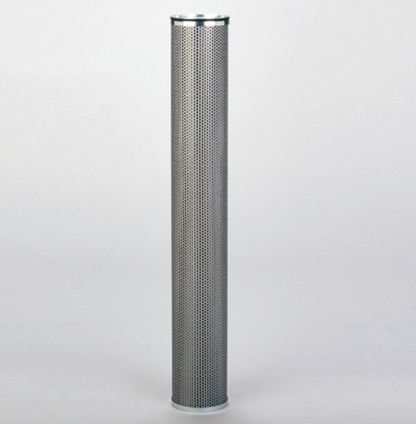

Donaldson Filtration P560406.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 3.80 inch (96.4 mm)

Inner Diameter 2.20 inch (56 mm)

Length 25.71 inch (653 mm)

Efficiency Beta 1000 6 micron

Collapse Burst 145 psi (10 bar)

Style Cartridge

Media Type Synthetic

Price Type FHPackaged Dimensions

Packaged Length 4.80 inch (12.192 cm)

Packaged Width 4.80 inch (12.192 cm)

Packaged Height 29.50 inch (74.930 cm)

Packaged Weight 4.23 lb (1.918 kg)

Packaged Volume 0.39 ft3 (0.011 m3)

Pieces Per Pallet 16

Other Information

Country of Origin Canada

NMFC Code 069100-04

HTS Code 8421290065

UPC Code 742330117224
