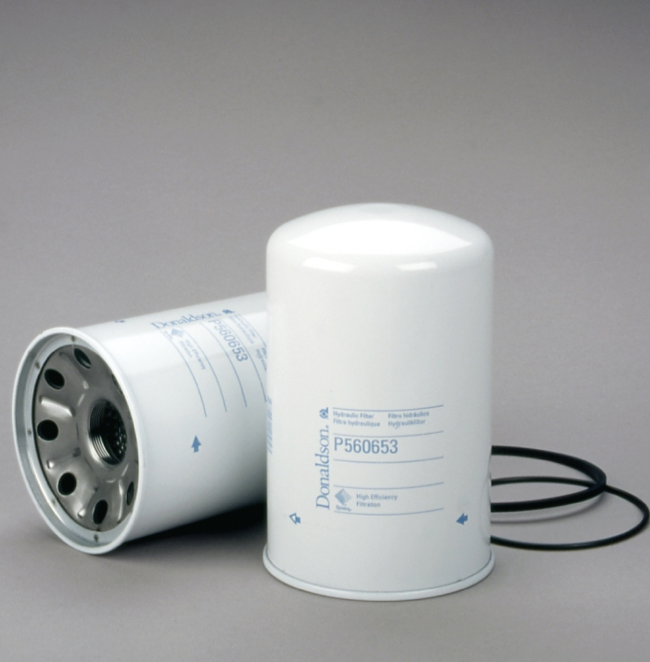

Donaldson Filtration P560653.HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters

• High-performance Hydraulic Spin-On filters utilize

Donaldson media technology which undergoes stringent

design and testing which sets the standard in filtration

performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic Spin-On filters for greater contamination control

• A variety of filters which meet and/or exceed OEM

specifications

Attributes

Outer Diameter 5.04 inch (128 mm)

Thread Size 1 1/2-16 UN

Length 7.85 inch (199.3 mm)

Gasket OD 5.04 inch (128 mm)

Gasket ID 4.76 inch (120.9 mm)

Efficiency Beta 1000 9 micron

Flow Direction Standard

Style Spin-OnMedia Type Synthetic

Price Type F

Primary Application CASE/CASE IH 1976934C5

Packaged Dimensions

Packaged Length 5.50 inch (13.970 cm)

Packaged Width 5.50 inch (13.970 cm)

Packaged Height 8.50 inch (21.590 cm)

Packaged Weight 3.02 lb (1.369 kg)

Packaged Volume 0.15 ft3 (0.004 m3)

Pieces Per Pallet 320

Other Information

Country of Origin United States

NMFC Code 069100-13

HTS Code 8421290040

UPC Code 742330125823

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Formaldehyde, which are known

to the State of California to cause cancer. For

more information go to

www.P65Warnings.ca.gov.
