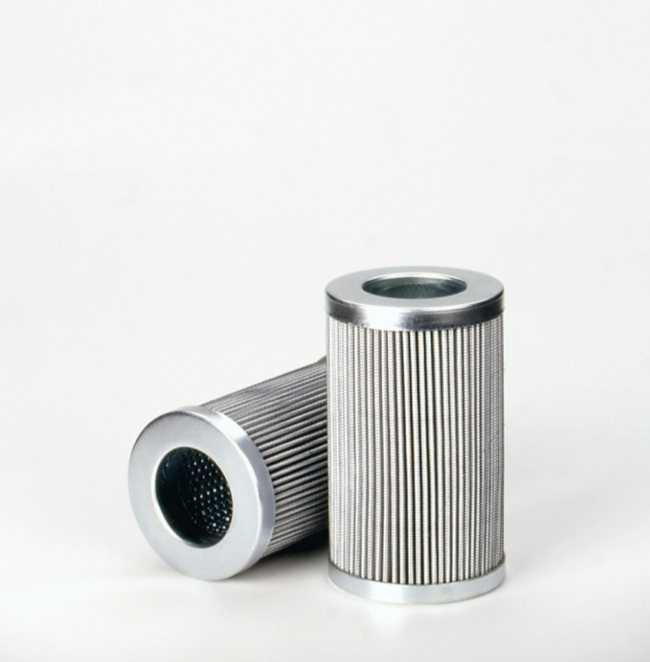

Donaldson Filtration P560709.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 3.29 inch (83.5 mm)

Inner Diameter 1.87 inch (47.5 mm)

Length 5.59 inch (142 mm)

Efficiency Beta 75 3 micron

Collapse Burst 3047 psi (210.1 bar)

Flow Direction Outside-In

Style Cartridge

Media Type Synthetic

Price Type FHPackaged Dimensions

Packaged Length 3.60 inch (9.144 cm)

Packaged Width 3.60 inch (9.144 cm)

Packaged Height 10.10 inch (25.654 cm)

Packaged Weight 2.30 lb (1.044 kg)

Packaged Volume 0.08 ft3 (0.002 m3)

Pieces Per Pallet 720

Other Information

Country of Origin Canada

NMFC Code 069100-13

HTS Code 8421290040

UPC Code 742330126097
