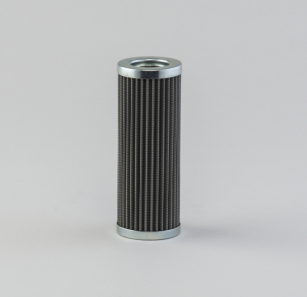

Donaldson Filtration P561280 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Mesh Rating 25 micron
Outer Diameter 2.09 inch (53 mm)
Inner Diameter 1.30 inch (33 mm)
Length 5.63 inch (143 mm)
Efficiency Beta 1000 12 micron
Collapse Burst 435 psi (30 bar)
Style Cartridge
Media Type Wire Mesh
Price Type FH*
Packaged Dimensions
Packaged Length 2.40 inch (6.096 cm)
Packaged Width 2.40 inch (6.096 cm)
Packaged Height 8.40 inch (21.336 cm)
Packaged Weight 0.45 lb (0.204 kg)
Packaged Volume 0.03 ft3 (0.001 m3)
Pieces Per Pallet 1600
Other Information
Country of Origin Canada
NMFC Code 069100-13
HTS Code 8421290040
UPC Code 742330133019
