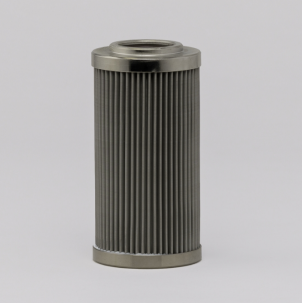

Donaldson Filtration P561384 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Mesh Rating 25 micron
Outer Diameter 3.07 inch (78 mm)
Inner Diameter 1.58 inch (40.2 mm)
Length 6.14 inch (156 mm)
Efficiency Beta 1000 8 micron
Collapse Burst 3047 psi (210.1 bar)
Flow Direction Outside-In
Style Cartridge
Media Type Wire Mesh
Price Type FH*
Packaged Dimensions
Packaged Length 3.90 inch (9.906 cm)
Packaged Width 3.90 inch (9.906 cm)
Packaged Height 7.40 inch (18.796 cm)
Packaged Weight 2.36 lb (1.071 kg)
Packaged Volume 0.07 ft3 (0.002 m3)
Pieces Per Pallet 720
Other Information
Country of Origin Canada
NMFC Code 069100-10
HTS Code 8421290040
UPC Code 742330134061
