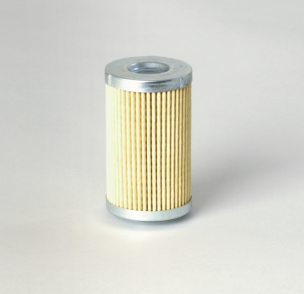

Donaldson Filtration P561469 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 2.09 inch (53 mm)
Inner Diameter 0.96 inch (24.5 mm)
Length 3.70 inch (94 mm)
Efficiency Beta 2 7 micron
Efficiency Beta 1000 23 micron
Collapse Burst 435 psi (30 bar)
Style Cartridge
Media Type Cellulose
Price Type FH
Packaged Dimensions
Packaged Length 2.50 inch (6.350 cm)
Packaged Width 2.20 inch (5.588 cm)
Packaged Height 4.60 inch (11.684 cm)
Packaged Weight 0.43 lb (0.193 kg)
Packaged Volume 0.01 ft3 (0.000 m3)
Pieces Per Pallet 1
Other Information
Country of Origin Canada
NMFC Code 133320
HTS Code 8421290040
UPC Code 742330134917
