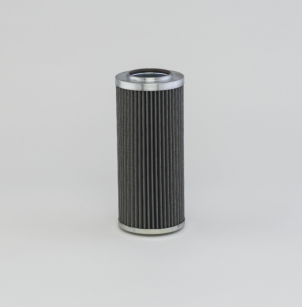

Donaldson Filtration P561988 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 4.02 inch (102 mm)
Inner Diameter 2.38 inch (60.5 mm)
Length 9.21 inch (234 mm)
Efficiency Beta 2 200 micron
Flow Direction Outside-In
Style Cartridge
Media Type Wire Mesh
Price Type FH*
Packaged Dimensions
Packaged Length 4.70 inch (11.939 cm)
Packaged Width 4.70 inch (11.939 cm)
Packaged Height 14.30 inch (36.323 cm)
Packaged Weight 3.10 lb (1.407 kg)
Packaged Volume 0.18 ft3 (0.005 m3)
Pieces Per Pallet 240
Other Information
Country of Origin Canada
NMFC Code 069100-09
HTS Code 8421290040
UPC Code 742330139738
