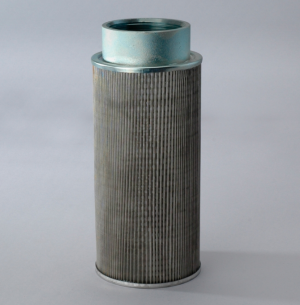

Donaldson Filtration P562211 HYDRAULIC FILTER, STRAINER

Why Choose Donaldson Hydraulic Strainers
• Suction strainers with stainless steel mesh screens protect
critical components such as pumps from damage.
• Tank mounted and in-tank options available.
• Variety of mesh sizes available to remove large particles or
objects built into the system during assembly or introduced
during standard maintenance.
• Prevents catastrophic failure.
Attributes
Mesh Rating 250 micron
Outer Diameter 5.12 inch (130.1 mm)
Inner Diameter 4.00 inch (101.6 mm)
Thread Size 3 NPT
Length 11.80 inch (299.72 mm)
Efficiency Beta 2 238 micron
Style Strainer
Media Type Wire Mesh
Price Type FH*
Packaged Dimensions
Packaged Length 5.80 inch (14.732 cm)
Packaged Width 5.30 inch (13.462 cm)
Packaged Height 12.60 inch (32.004 cm)
Packaged Weight 3.23 lb (1.466 kg)
Packaged Volume 0.22 ft3 (0.006 m3)
Pieces Per Pallet 183
Other Information
Country of Origin United States
NMFC Code 069100-09
HTS Code 8421290065
UPC Code 742330150924
