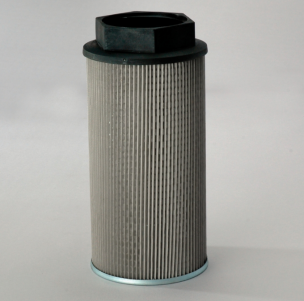

Donaldson Filtration P562224 HYDRAULIC FILTER, STRAINER

Why Choose Donaldson Hydraulic Strainers
• Suction strainers with stainless steel mesh screens protect
critical components such as pumps from damage.
• Tank mounted and in-tank options available.
• Variety of mesh sizes available to remove large particles or
objects built into the system during assembly or introduced
during standard maintenance.
• Prevents catastrophic failure.
Attributes
Mesh Rating 150 micron
Outer Diameter 5.20 inch (132.1 mm)
Inner Diameter 3.80 inch (96.52 mm)
Thread Size 3 NPT
Length 10.90 inch (276.86 mm)
Efficiency Beta 2 149 micron
Bypass Valve Yes
Bypass Valve Setting LR 3 psi (0.2 bar)
Style Strainer
Media Type Wire Mesh
Price Type FH
Packaged Dimensions
Packaged Length 5.50 inch (13.970 cm)
Packaged Width 5.50 inch (13.970 cm)
Packaged Height 12.80 inch (32.512 cm)
Packaged Weight 1.65 lb (0.749 kg)
Packaged Volume 0.22 ft3 (0.006 m3)
Pieces Per Pallet 168
Other Information
Country of Origin United States
NMFC Code 069100-01
HTS Code 8421290065
UPC Code 742330151044
