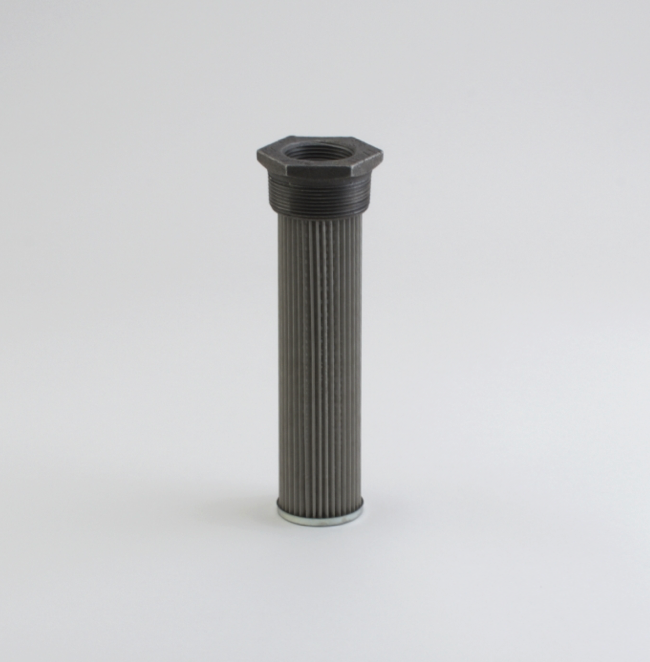

Donaldson Filtration P562267.HYDRAULIC FILTER, STRAINER

Why Choose Donaldson Hydraulic Strainers

• Suction strainers with stainless steel mesh screens protect

critical components such as pumps from damage.

• Tank mounted and in-tank options available.

• Variety of mesh sizes available to remove large particles or

objects built into the system during assembly or introduced

during standard maintenance.

• Prevents catastrophic failure.

Attributes

Mesh Rating 150 micron

Outer Diameter 2.12 inch (53.85 mm)

Thread Size 1 1/4 NPT

Length 9.04 inch (229.62 mm)

Efficiency Beta 2 149 micron

Bypass Valve Yes

Bypass Valve Setting LR 6 psi (0.4 bar)

Style Strainer

Media Type Wire Mesh

Price Type FHPackaged Dimensions

Packaged Length 3.20 inch (8.128 cm)

Packaged Width 2.70 inch (6.858 cm)

Packaged Height 10.10 inch (25.654 cm)

Packaged Weight 1.11 lb (0.502 kg)

Packaged Volume 0.05 ft3 (0.001 m3)

Pieces Per Pallet 50

Other Information

Country of Origin United States

NMFC Code 069100-09

HTS Code 8421290065

UPC Code 742330151440
