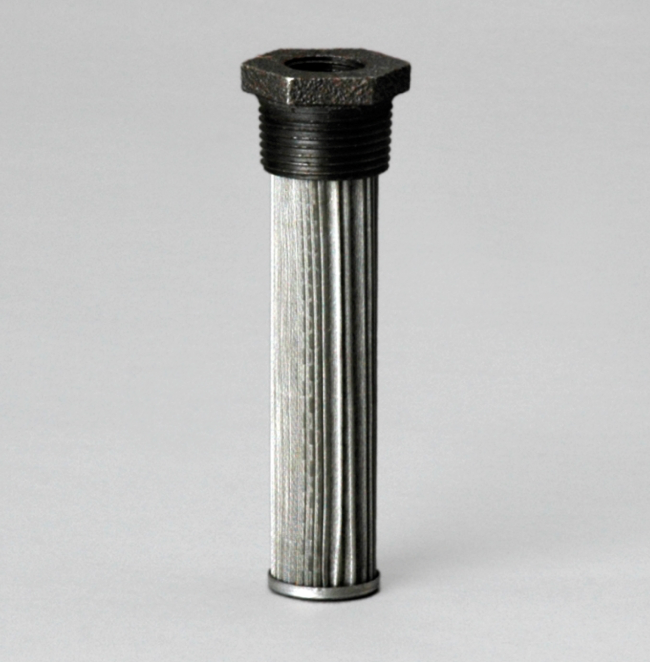

Donaldson Filtration P562274.HYDRAULIC FILTER, STRAINER

Why Choose Donaldson Hydraulic Strainers

• Suction strainers with stainless steel mesh screens protect

critical components such as pumps from damage.

• Tank mounted and in-tank options available.

• Variety of mesh sizes available to remove large particles or

objects built into the system during assembly or introduced

during standard maintenance.

• Prevents catastrophic failure.

Attributes

Mesh Rating 150 micron

Outer Diameter 1.17 inch (29.72 mm)

Thread Size 1/2 NPT

Length 5.34 inch (135.64 mm)

Efficiency Beta 2 149 micron

Style Strainer

Media Type Wire Mesh

Price Type FH

Packaged DimensionsPackaged Length 2.70 inch (6.858 cm)

Packaged Width 2.30 inch (5.842 cm)

Packaged Height 6.50 inch (16.510 cm)

Packaged Weight 0.14 lb (0.061 kg)

Packaged Volume 0.02 ft3 (0.001 m3)

Pieces Per Pallet 2072

Other Information

Country of Origin United States

NMFC Code 069100-13

HTS Code 8421290065

UPC Code 742330151518
