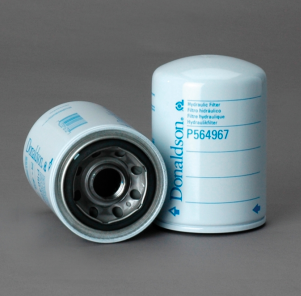

Donaldson Filtration P564967 Hydraulic Filter, Spin On

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Outer Diameter 3.66 inch (93 mm)
Thread Size 1-12 UN
Length 5.35 inch (136 mm)
Gasket OD 2.81 inch (71.5 mm)
Gasket ID 2.42 inch (61.5 mm)
Efficiency Beta 1000 6 micron
Flow Direction Standard
Style Spin-On
Series SP15/25
Price Type FH
Packaged Dimensions
Packaged Length 3.90 inch (9.906 cm)
Packaged Width 4.00 inch (10.160 cm)
Packaged Height 5.60 inch (14.224 cm)
Packaged Weight 1.30 lb (0.590 kg)
Packaged Volume 0.05 ft3 (0.001 m3)
Pieces Per Pallet 840
Other Information
Country of Origin Mexico
NMFC Code 069100-10
HTS Code 8421290040
UPC Code 742330167335
