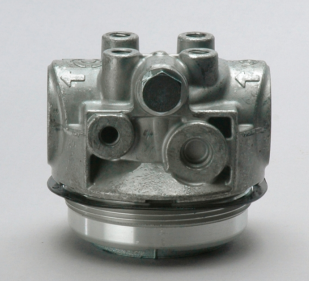

Donaldson Filtration P568857 HEAD ASSEMBLY, HYDRAULIC

Why Choose Donaldson Hydraulic Heads
• A variety of low, medium and high-pressure filter heads
available for a wide range of applications.
• Choose between optional features for a customized heads
that best fits the needs of your specific application.
• A variety of inlet & outlet port configurations are available
to meet your exact requirements.
Attributes
Length 4.00 inch (101.6 mm)
Height 3.66 inch (92.9 mm)
Inlet Size SAE-12
Outlet Size SAE-12
Filter-to-Head Thread M87 x 2.5
Bypass Valve No
Series HNK04/05
Price Type H
Packaged Dimensions
Packaged Length 4.30 inch (10.922 cm)
Packaged Width 4.30 inch (10.922 cm)
Packaged Height 5.40 inch (13.716 cm)
Packaged Weight 2.15 lb (0.976 kg)
Packaged Volume 0.06 ft3 (0.002 m3)
Pieces Per Pallet 800
Other Information
Country of Origin United States
NMFC Code 133320
HTS Code 8421990180
UPC Code 742330194003
