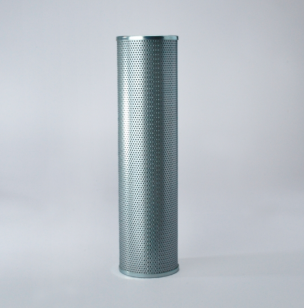

Donaldson Filtration P763016 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 4.96 inch (126 mm)
Inner Diameter 3.62 inch (92 mm)
Length 18.90 inch (480 mm)
Efficiency Beta 1000 8 micron
Collapse Burst 145 psi (10 bar)
Flow Direction Inside-Out
Style Cartridge
Media Type Synthetic
Price Type FH
Primary Application FAIREY ARLON TXW8CGDL6
Packaged Dimensions
Packaged Length 5.80 inch (14.732 cm)
Packaged Width 5.40 inch (13.716 cm)
Packaged Height 19.60 inch (49.784 cm)
Packaged Weight 4.19 lb (1.898 kg)
Packaged Volume 0.36 ft3 (0.010 m3)
Other Information
Country of Origin Italy
NMFC Code 069100-04
HTS Code 8421290040
UPC Code 742330126004
