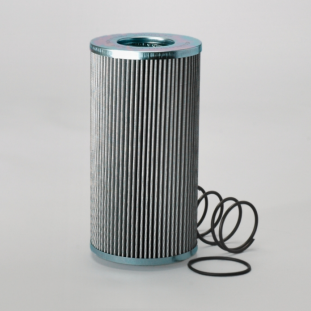

Donaldson Filtration P763258 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 5.08 inch (129 mm)
Inner Diameter 2.56 inch (65 mm)
Length 15.75 inch (400 mm)
Efficiency Beta 75 25 micron
Efficiency Beta 200 18 micron
Efficiency Beta 1000 23 micron
Bypass Valve Yes
Bypass Valve Setting LR 22 psi (1.5 bar)
Collapse Burst 145 psi (10 bar)
Flow Direction Outside-In
Style Cartridge
Media Type Synthetic
Price Type FH
Packaged Dimensions
Packaged Length 5.75 inch (14.605 cm)
Packaged Width 5.75 inch (14.605 cm)
Packaged Height 16.50 inch (41.910 cm)
Packaged Weight 4.17 lb (1.891 kg)
Packaged Volume 0.32 ft3 (0.009 m3)
Other Information
Country of Origin Italy
NMFC Code 133320
HTS Code 8421290040
UPC Code 742330129036
