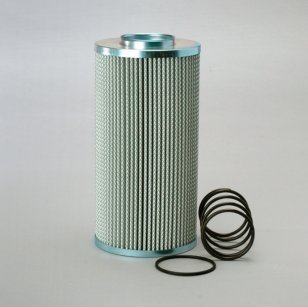

Donaldson Filtration P763265 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 5.08 inch (129 mm)
Inner Diameter 2.51 inch (63.7 mm)
Length 9.84 inch (250 mm)
Efficiency Beta 1000 11 micron
Bypass Valve Yes
Bypass Valve Setting LR 22 psi (1.5 bar)
Collapse Burst 145 psi (10 bar)
Flow Direction Outside-In
Style Cartridge
Media Type Synthetic
Price Type FH
Packaged Dimensions
Packaged Length 5.90 inch (14.986 cm)
Packaged Width 5.80 inch (14.732 cm)
Packaged Height 11.10 inch (28.194 cm)
Packaged Weight 2.86 lb (1.297 kg)
Packaged Volume 0.22 ft3 (0.006 m3)
Pieces Per Pallet 192
Other Information
Country of Origin Italy
NMFC Code 069100-12
HTS Code 8421290040
UPC Code 742330129104
