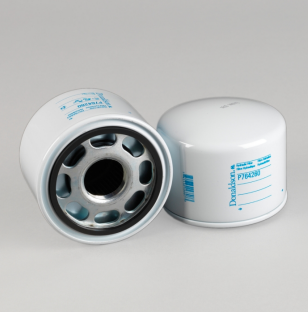

Donaldson Filtration P764260 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Outer Diameter 5.08 inch (129 mm)
Thread Size M42 x 2
Length 3.94 inch (100 mm)
Gasket OD 4.21 inch (107 mm)
Gasket ID 3.82 inch (97 mm)
Efficiency Beta 2 150 micron
Flow Direction Inside-Out
Style Spin-On
Media Type Wire Mesh
Price Type FH
Packaged Dimensions
Packaged Length 5.91 inch (15.011 cm)
Packaged Width 5.91 inch (15.011 cm)
Packaged Height 5.12 inch (13.005 cm)
Packaged Weight 2.25 lb (1.020 kg)
Packaged Volume 0.10 ft3 (0.003 m3)
Pieces Per Pallet 432
Other Information
Country of Origin Italy
NMFC Code 069100-13
HTS Code 8421290040
UPC Code 742330168073
