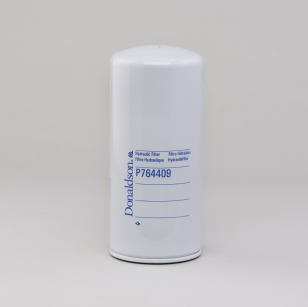

Donaldson Filtration P764409 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Outer Diameter 5.33 inch (135.5 mm)
Thread Size 1 1/2-16 UN
Length 12.05 inch (306 mm)
Gasket OD 4.33 inch (110 mm)
Gasket ID 3.94 inch (100 mm)
Efficiency Beta 2 27 micron
Flow Direction Outside-In
Style Spin-On
Media Type Cellulose
Price Type FH
Packaged Dimensions
Packaged Length 5.76 inch (14.630 cm)
Packaged Width 5.76 inch (14.630 cm)
Packaged Height 12.36 inch (31.394 cm)
Packaged Weight 4.66 lb (2.114 kg)
Packaged Volume 0.24 ft3 (0.007 m3)
Other Information
Country of Origin Italy
NMFC Code 069100-06
HTS Code 8421290040
UPC Code 742330170564
