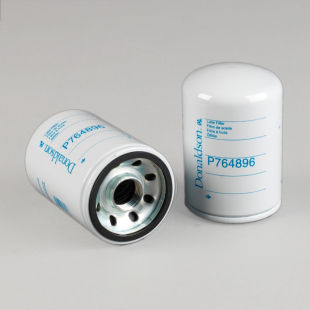

Donaldson Filtration P764896 LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?
Donaldson lube filters are designed to keep today’s engine
lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause
engine damage.
• Include heavy duty components that are built to perform,
built to last.
• Deliver essential engine protection for maximum cold flow
performance.
Attributes
Outer Diameter 3.07 inch (78 mm)
Thread Size 1-12 UN
Length 4.82 inch (122.5 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.48 inch (63 mm)
Efficiency 50% 27 micron
Efficiency Test Std ISO 16889
Bypass Valve Setting LR 32 psi (2.2 bar)
Bypass Valve Setting HR 41 psi (2.8 bar)
Media Type Cellulose
Collapse Burst 145 psi (10 bar)
Type Full-Flow
Style Spin-On
Price Type F
Packaged Dimensions
Packaged Length 0.04 inch (0.102 cm)
Packaged Width 0.04 inch (0.102 cm)
Packaged Height 0.04 inch (0.102 cm)
Packaged Weight 0.91 lb (0.414 kg)
Packaged Volume 0.04 ft3 (0.001 m3)
Other Information
Country of Origin Bosnia and Herzegovina
NMFC Code 121510
HTS Code 8421230000
UPC Code 742330181188
