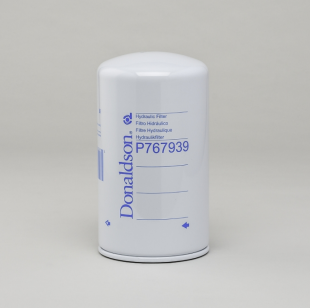

Donaldson Filtration P767939 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Outer Diameter 5.34 inch (135.6 mm)
Thread Size M55 x 1.5
Gasket OD 4.32 inch (109.7 mm)
Gasket ID 3.94 inch (100 mm)
Overall Length 9.61 inch (244 mm)
Efficiency Beta 200 42 micron
Efficiency Beta 1000 50 micron
Price Type FH
Packaged Dimensions
Packaged Length 5.91 inch (15.011 cm)
Packaged Width 5.51 inch (13.995 cm)
Packaged Height 10.24 inch (26.010 cm)
Packaged Weight 4.15 lb (1.882 kg)
Packaged Volume 0.19 ft3 (0.005 m3)
Other Information
Country of Origin Italy
NMFC Code 069100-13
HTS Code 8421290040
UPC Code 742330237755
