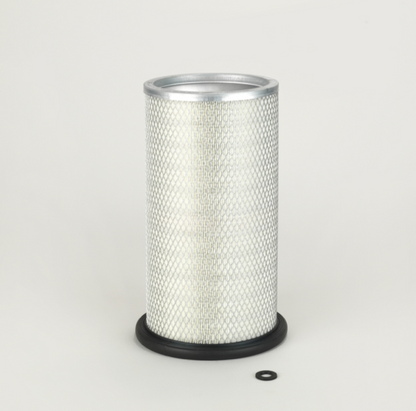

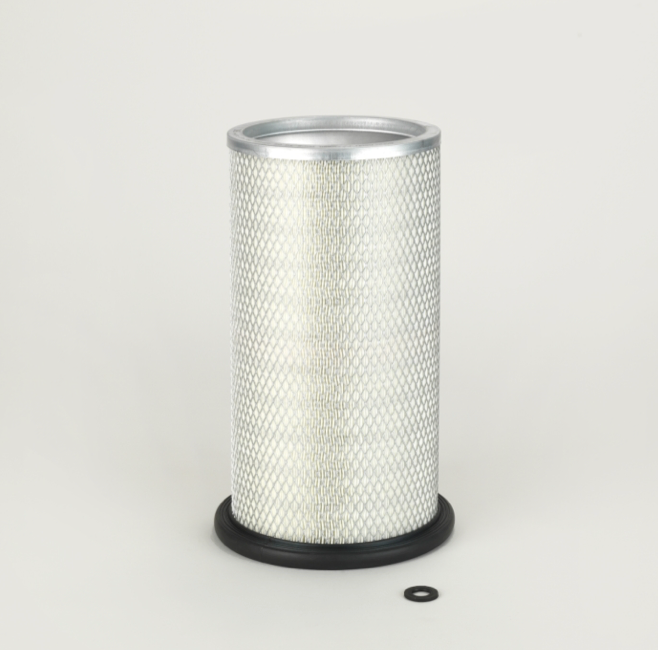

Donaldson Filtration P775500.AIR FILTER, SAFETY

Why Choose Donaldson Safety Filters?

Safety filters have two functions: to act as a backup to the

primary filter and to protect the engine during primary filter

servicing.

• Serve as a backup filter in case of primary filter damage or

improper installation.

• Prevent contaminants from entering the clean side of the

air intake system during primary filter servicing.

• Designed to plug rapidly if contamination finds its way past

the primary filter, alerting operators about an issue.

• Recommend that safety filters are replaced with every third

primary filter change unless there has been a failure of the

primary filter.

Attributes

Outer Diameter 7.28 inch (185 mm)

Inner Diameter 6.22 inch (158 mm)

Length 14.57 inch (370 mm)

Efficiency Test Std ISO 5011

Type Safety

Style Round

Price Type FPackaged Dimensions

Packaged Length 9.06 inch (23.012 cm)

Packaged Width 8.66 inch (21.996 cm)

Packaged Height 16.14 inch (40.996 cm)

Packaged Weight 3.14 lb (1.423 kg)

Packaged Volume 0.73 ft3 (0.020 m3)

Pieces Per Pallet 40

Other Information

Country of Origin Czech Republic

NMFC Code 069100-02

HTS Code 8421310000

UPC Code 742330048443
