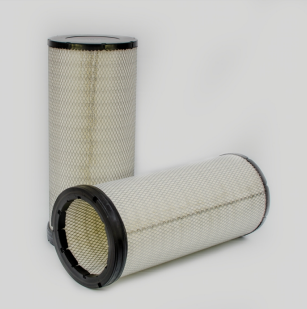

DONALDSON FILTRATION P783281 AIR FILTER, SAFETY

Why Choose Donaldson Safety Filters?

Safety filters have two functions: to act as a backup to the

primary filter and to protect the engine during primary filter

servicing.

• Serve as a backup filter in case of primary filter damage or

improper installation.

• Prevent contaminants from entering the clean side of the

air intake system during primary filter servicing.

• Designed to plug rapidly if contamination finds its way past

the primary filter, alerting operators about an issue.

• Recommend that safety filters are replaced with every third

primary filter change unless there has been a failure of the

primary filter.

Attributes

Outer Diameter 9.09 inch (230.9 mm)

Inner Diameter 6.94 inch (176.3 mm)

Length 20.24 inch (514 mm)

Efficiency Test Std ISO 5011

Primary Application TEREX 15273424

Type Safety

Style RoundPrice Type F

Packaged Dimensions

Packaged Length 10.60 inch (26.924 cm)

Packaged Width 10.90 inch (27.686 cm)

Packaged Height 23.40 inch (59.436 cm)

Packaged Weight 4.65 lb (2.107 kg)

Packaged Volume 1.56 ft3 (0.044 m3)

Pieces Per Pallet 32

Other Information

Country of Origin Poland

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330140017
