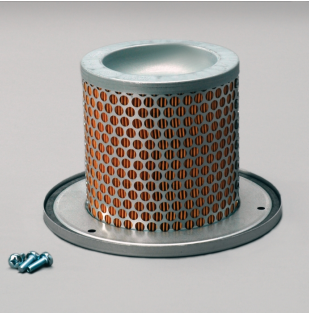

DONALDSON FILTRATION P783501 AIR FILTER, SAFETY

Why Choose Donaldson Safety Filters?

Safety filters have two functions: to act as a backup to the

primary filter and to protect the engine during primary filter

servicing.

• Serve as a backup filter in case of primary filter damage or

improper installation.

• Prevent contaminants from entering the clean side of the

air intake system during primary filter servicing.

• Designed to plug rapidly if contamination finds its way past

the primary filter, alerting operators about an issue.

• Recommend that safety filters are replaced with every third

primary filter change unless there has been a failure of the

primary filter.

Attributes

Outer Diameter 5.04 inch (128 mm)

Inner Diameter 3.62 inch (92 mm)

Length 5.22 inch (132.5 mm)

Efficiency Test Std ISO 5011

Type Safety

Style Round

Price Type FPackaged Dimensions

Packaged Length 7.87 inch (19.990 cm)

Packaged Width 7.87 inch (19.990 cm)

Packaged Height 7.48 inch (18.999 cm)

Packaged Weight 1.39 lb (0.630 kg)

Packaged Volume 0.27 ft3 (0.008 m3)

Pieces Per Pallet 120

Other Information

Country of Origin Bosnia and Herzegovina

NMFC Code 069100-09

HTS Code 8421310000

UPC Code 742330145128
