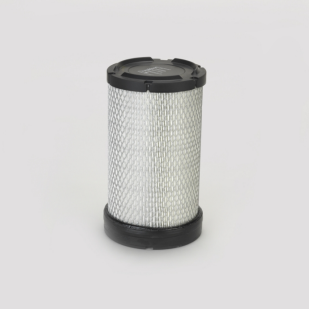

DONALDSON FILTRATION P783544 AIR FILTER, SAFETY RADIALSEAL

Why Choose Donaldson Safety Filters?

Safety filters have two functions: to act as a backup to the

primary filter and to protect the engine during primary filter

servicing.

• Serve as a backup filter in case of primary filter damage or

improper installation.

• Prevent contaminants from entering the clean side of the

air intake system during primary filter servicing.

• Designed to plug rapidly if contamination finds its way past

the primary filter, alerting operators about an issue.

• Recommend that safety filters are replaced with every third

primary filter change unless there has been a failure of the

primary filter.

Attributes

Outer Diameter 5.94 inch (150.9 mm)

Inner Diameter 4.31 inch (109.6 mm)

Length 9.84 inch (250 mm)

Type Safety

Style Radialseal

Media Type Safety

Price Type FPackaged Dimensions

Packaged Length 6.69 inch (16.993 cm)

Packaged Width 6.69 inch (16.993 cm)

Packaged Height 11.02 inch (27.991 cm)

Packaged Weight 1.30 lb (0.590 kg)

Packaged Volume 0.29 ft3 (0.008 m3)

Pieces Per Pallet 252

Other Information

Country of Origin Czech Republic

NMFC Code 069100-08

HTS Code 8421310000

UPC Code 742330167847
