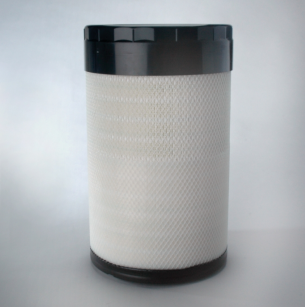

Donaldson Filtration P785590 AIR FILTER, PRIMARY RADIALSEAL

Why Choose Donaldson RadialSeal™ Filters?

Reliable, leak- resistant Radial Seal™ keeps filters in place –

even under heavy vibration.

• High-efficiency cellulose media performs across a wide

range of heavy-duty engine applications.

• Corrosion resistant, coated steel liners support media

during operation and help maximize airflow.

• Pleatloc™ feature ensures uniform pleat spacing and

prevents media from bunching to promote longer service

life.

Attributes

Outer Diameter 12.32 inch (313 mm)

Inner Diameter 7.01 inch (178 mm)

Length 20.16 inch (512 mm)

Efficiency Up to 99.99%

Efficiency Test Std ISO 5011

Primary Application Plastic sleeve generates pre-cleaning in two

stage Air Cleaners

Type Primary

Style RadialsealBrand RadialSeal™

Price Type F

Packaged Dimensions

Packaged Length 12.72 inch (32.309 cm)

Packaged Width 12.72 inch (32.309 cm)

Packaged Height 21.24 inch (53.950 cm)

Packaged Weight 8.35 lb (3.787 kg)

Packaged Volume 1.98 ft3 (0.055 m3)

Pieces Per Pallet 18

Other Information

Country of Origin Czech Republic

NMFC Code 069100-02

HTS Code 8421310000

UPC Code 742330176061
