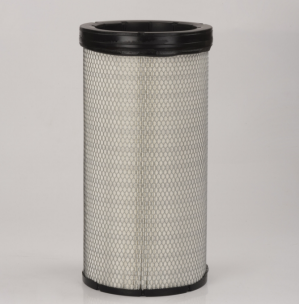

Donaldson Filtration P786198 AIR FILTER, SAFETY RADIALSEAL

Why Choose Donaldson Safety Filters?

Safety filters have two functions: to act as a backup to the

primary filter and to protect the engine during primary filter

servicing.

• Serve as a backup filter in case of primary filter damage or

improper installation.

• Prevent contaminants from entering the clean side of the

air intake system during primary filter servicing.

• Designed to plug rapidly if contamination finds its way past

the primary filter, alerting operators about an issue.

• Recommend that safety filters are replaced with every third

primary filter change unless there has been a failure of the

primary filter.

Attributes

Outer Diameter 9.09 inch (230.9 mm)

Inner Diameter 6.94 inch (176.3 mm)

Length 17.60 inch (447 mm)

Type Safety

Style Radialseal

Media Type Safety

Flow Direction StandardPrice Type F

Packaged Dimensions

Packaged Length 9.72 inch (24.689 cm)

Packaged Width 9.72 inch (24.689 cm)

Packaged Height 19.68 inch (49.987 cm)

Packaged Weight 3.92 lb (1.778 kg)

Packaged Volume 1.07 ft3 (0.030 m3)

Pieces Per Pallet 80

Other Information

Country of Origin Czech Republic

NMFC Code 069100-03

HTS Code 8421310000

UPC Code 742330180426
