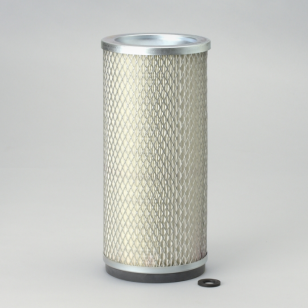

Donaldson Filtration P788912 AIR FILTER, SAFETY RADIALSEAL

Why Choose Donaldson Safety Filters?

Safety filters have two functions: to act as a backup to the

primary filter and to protect the engine during primary filter

servicing.

• Serve as a backup filter in case of primary filter damage or

improper installation.

• Prevent contaminants from entering the clean side of the

air intake system during primary filter servicing.

• Designed to plug rapidly if contamination finds its way past

the primary filter, alerting operators about an issue.

• Recommend that safety filters are replaced with every third

primary filter change unless there has been a failure of the

primary filter.

Attributes

Outer Diameter 5.16 inch (131 mm)

Inner Diameter 3.98 inch (101 mm)

Length 10.83 inch (275 mm)

Bolt Hole Diameter 0.67 inch (17 mm)

Type Safety

Style Radialseal

Brand RadialSeal™Media Type Safety

Flow Direction Standard

Price Type F

Packaged Dimensions

Packaged Length 5.91 inch (15.011 cm)

Packaged Width 5.91 inch (15.011 cm)

Packaged Height 13.78 inch (35.001 cm)

Packaged Weight 1.68 lb (0.760 kg)

Packaged Volume 0.28 ft3 (0.008 m3)

Pieces Per Pallet 144

Other Information

Country of Origin Czech Republic

NMFC Code 069100-08

HTS Code 8421310000

UPC Code 742330198391
