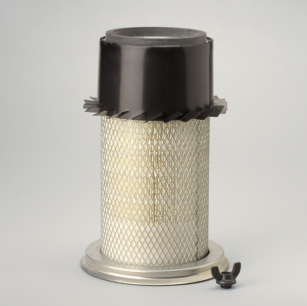

Donaldson Filtration P788982 AIR FILTER, PRIMARY ROUND

Why Choose Donaldson Air Filters?

Strong, reliable gasket is compressed against the air cleaner

housing to create a tight seal.

• High-efficiency cellulose media performs across a wide

range of heavy-duty engine applications.

• Corrosion resistant, coated steel liners support media

during operation and help maximize airflow.

• Pleatloc™ feature ensures uniform pleat spacing and

prevents media from bunching to promote longer service

life.

Attributes

Overall Length 13.12 inch (333.2 mm)

Outer Diameter 6.08 inch (154.5 mm)

Inner Diameter 3.48 inch (88.5 mm)

Length 12.62 inch (320.5 mm)

Bolt Hole Diameter 0.59 inch (15 mm)

Efficiency 99.95

Efficiency Test Std ISO 5011

Type PrimaryStyle Round

Media Type Cellulose

Flow Direction Outside-In

Price Type F

Packaged Dimensions

Packaged Length 9.06 inch (23.012 cm)

Packaged Width 8.66 inch (21.996 cm)

Packaged Height 14.17 inch (35.992 cm)

Packaged Weight 3.62 lb (1.640 kg)

Packaged Volume 0.64 ft3 (0.018 m3)

Pieces Per Pallet 60

Other Information

Country of Origin Czech Republic

NMFC Code 069100-04

HTS Code 8421310000

UPC Code 742330199367
